SPECIFICATIONS | |||||
Module Type | BSM650PMB6-69SDC | BSM655PMB6-69SDC | BSM660PMB6-69SDC | BSM665PMB6-69SDC | BSM670PMB6-69SDC |
STC | STC | STC | STC | STC | |
Maximum Power (Pmax/W) | 650 | 655 | 660 | 665 | 670 |
Operating Voltage (Vmpp/V) | 38.7 | 38.8 | 38.9 | 39.0 | 39.1 |
Operating Current (Impp/A) | 16.8 | 16.86 | 16.95 | 17.05 | 17.14 |
Open-Circuit Voltage (Voc/V) | 46.7 | 46.8 | 46.9 | 47.0 | 47.1 |
Short-Circuit Current (Isc/A) | 17.84 | 17.94 | 18.04 | 18.14 | 18.23 |
Module Efficiency (%) | 21.0 | 21.1 | 21.2 | 21.4 | 21.6 |
STC: Cell Temperature 25°C, Air Mass AM1.5 | |||||
Electrical characteristics with different rear side power gain (refer to 670W front) | |||||
Pmax gain | Pmax/W | Vmpp/V | Impp/A | Voc/V | Isc/A |
5% | 683 | 38.2 | 17.80 | 46.1 | 18.9 |
10% | 715 | 38.2 | 18.65 | 46.1 | 19.8 |
15% | 748 | 38.2 | 19.49 | 46.1 | 20.7 |
20% | 780 | 38.2 | 20.34 | 46.2 | 21.6 |
25% | 813 | 38.2 | 21.19 | 46.2 | 22.5 |
| The Company | Bluesun Solar Co., Ltd. |
| The Contact | Dorsey |
| The Address | China |
| The Telephone | +8618326072415 |
| The Website | https://www.globaloemfactory.com/com/bluesun/ |

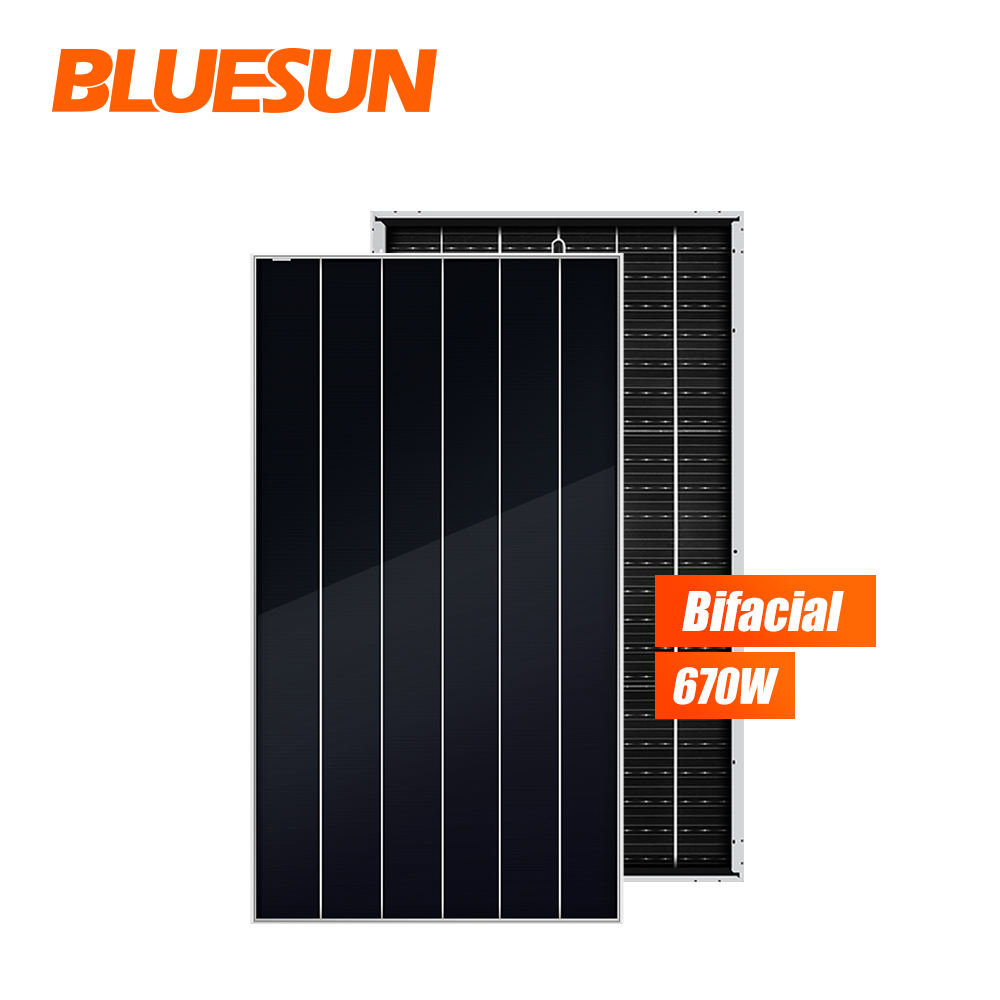

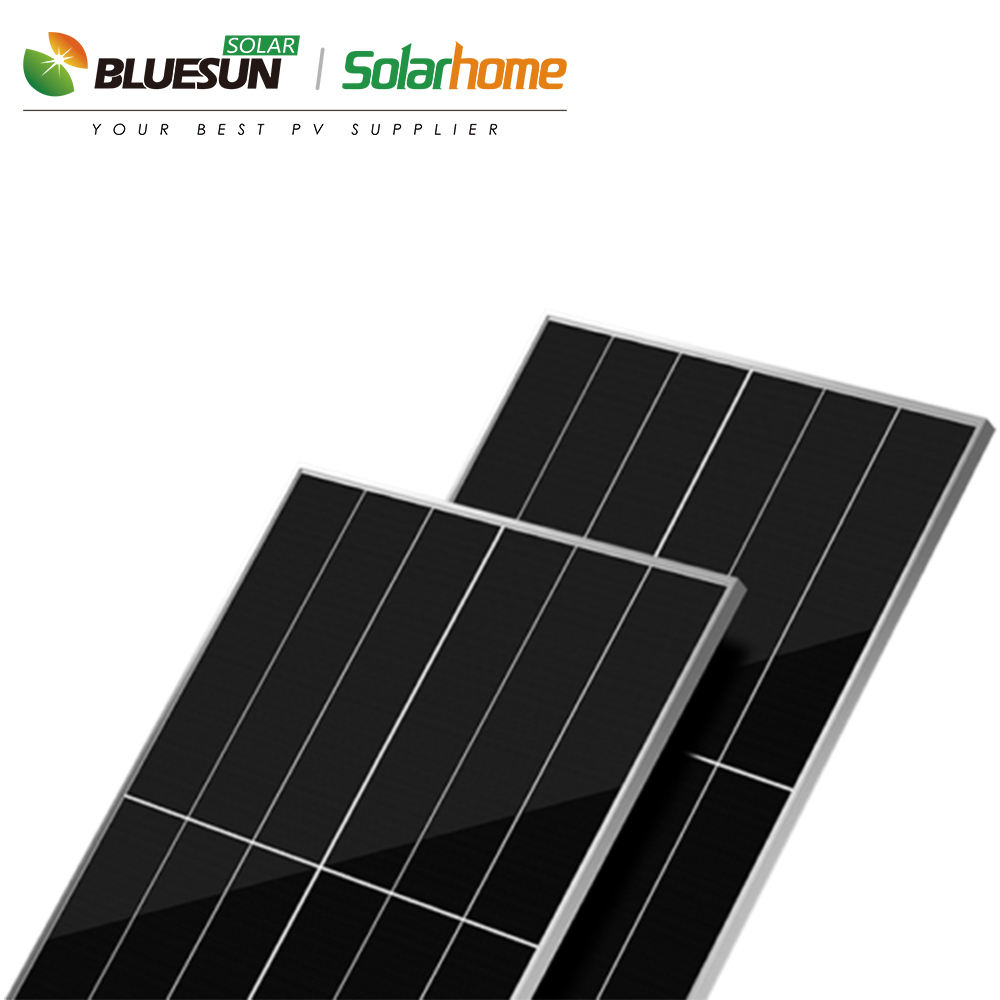

Bluesun Shingled Solar Panel 670W Bifaical Mono PV Module in EU Stock 700W 670W 665W 660W Solar Panel
Response Rate: High
Avg Response Time: 24–48 h
Business Type: Manufacturer & Trading Company
